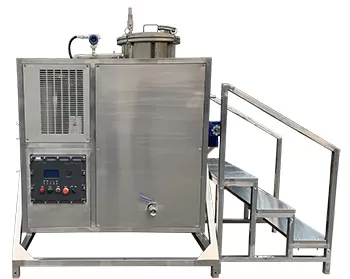

Hy250Ex Solvent Recovery Unit
The Hy250EX is a cost-effective, explosion-proof solvent recovery unit with a 250-liter capacity. It features manual feeding and manual operation without liquid level detection, making it ideal for companies seeking a simple, safe, and affordable solution for distilling solvents like acetone, ethanol, and MEK.
Key Features of Hy250EX
- Explosion-proof and CE/ATEX-ready design
- Thermo-oil heating system with integrated temperature control
- Air cooling system (customizable to water cooling)
- Supports manual feeding, bottom discharge, and slag-dumping
- Pre-filled with heat transfer oil – ready to use
- Optional accessories available: vacuum device, feeding system, Teflon liners
- No automatic feeding system (manual feeding only)
- No liquid level control system (manual monitoring required)
If you require an automatic feeding system and liquid level control, please check our upgraded model — HY250EX-A, designed for fully automated solvent recovery workflows.
It is suited to equip with the vacuum, the feeding device and the recycling bags. You are welcome to customize products.
The power supply voltage is optional, can be custom-made such as 110V, 220V, 240V, 380V, 400V or 460V; single phase (one phase) or three phase (or tri-phase).
Nylon and woven Teflon liners are available for the distillation bucket, can be custom-made.
The parameters of recovery time and recovery rate are for reference purposes only. The actual parameters depend on the solvent type, impurity content and environmental temperature.
The heat transfer oil is ready, no need to pour the heat transfer oil into the new machine!
The cooling system of Hy250Ex solvent recycling machine can be custom-made and changed to the water cooling system according to the requirements of customers.
| Model/Type: | Hy250Ex Solvent Recovery Unit |
|---|---|
| Capacity: | 250 Liters |
| Operating temperature: | 50–210°C |
| Thermo-oil heating: | Integrated |
| Voltage, frequency: | 380V / 50–60Hz (3Ph) |
| Power input, average: | 16.12 kW |
| Width × Length × Height: | 1220 × 1800 × 1950 mm |
| Net weight approx: | 480 kg |
Hy250EX is a smart entry-level choice for businesses looking to start solvent recovery safely and affordably.
For automation or advanced requirements, we recommend upgrading to Hy250EX-A.
