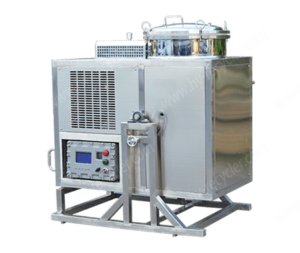

Standard Type Solvent Recovery Unit
Air cooling system, Manual feeding, Dumping slag-off.
Intelligent automatic running & multi-stage control:
Adopts single-chip control system & the display screen visual display technology, convenient and simple to modify or adjust preset parameter; The equipment is intelligent running and safe.
Machine type
With single-chip controller, it’s available to customised capacity (model is from 20 up to 450L).
| Item | Hy20Ex | Hy40Ex | Hy60Ex | Hy90Ex | Hy125Ex | Hy250Ex | Hy450Ex |
|---|---|---|---|---|---|---|---|
| Capacity | 20 | 40 | 60 | 90 | 125 | 250 | 450 |
| Control box | Single-chip | ||||||
| Operating temperature | 50-210°C | ||||||
| Power | 2 | 4 | 4 | 5 | 6 | 16 | 32 |
| Dumping structure | √ | √ | √ | √ | √ | √ | × |
| Bottom drainage | × | × | × | optional | optional | √ | √ |
| Air Cooling | √ | √ | √ | √ | √ | √ | × |
| Water Cooling | optional | optional | optional | optional | optional | optional | √ |
| Copper Condenser | √ | √ | √ | √ | √ | √ | × |
| SS316 Condenser | optional | optional | optional | optional | optional | optional | √ |
| Auto-feeding | × | × | optional | optional | optional | optional | optional |
| Vacuum | optional | optional | optional | optional | optional | optional | optional |
* The recovery time and recovery rate are for reference purposes only. The actual parameters depend on the solvent type, impurity content and environmental temperature.
Suited to equip with vacuum, feeding device & bags. Welcome to custom
Nylon and woven Teflon liners are available for the distillation bucket, can be custom-made.
The cooling system can be changed to water cooling according to customer requirements.When water cooling is selected, the condenser is made of SS316
The power supply can be custom-made such as 110V, 220V, 240V, 380V or 415V; single or three phase.
The heat transfer oil is ready, no need to pour the heat transfer oil into the new machine!
